Outdoor Small Pitch LED Display
Outdoor Small Pitch LED Display Small Pitch Series

Configuration

Small Pitch Series

High-resolution outdoor display for close-viewing applications. Constant current drive with annual light decay under 5%. Silent temperature-control fan for improved stability.

≥5000 cd/m²<5% annual decaySilent cooling

PITCH

P2.5–P3.33

IP

IP65

MATERIAL

Aluminum Alloy

BRIGHTNESS

≥5000 cd/m²

Key Features

Built different.

Direct-Sunlight Visibility

Bright colors, high contrast, and high brightness keep content clearly visible in strong outdoor sunlight.

Flexible Cabinet Sizing

Standard modules and adjustable cabinet dimensions simplify steel-structure installation and maintenance.

Silent Thermal Control

Energy-saving power supplies and temperature-controlled fans improve ventilation, heat dissipation, and service life.

Controlled Light Decay

Constant-current drive holds annual light decay within 5% for consistent long-term display performance.

Close-View Outdoor Detail

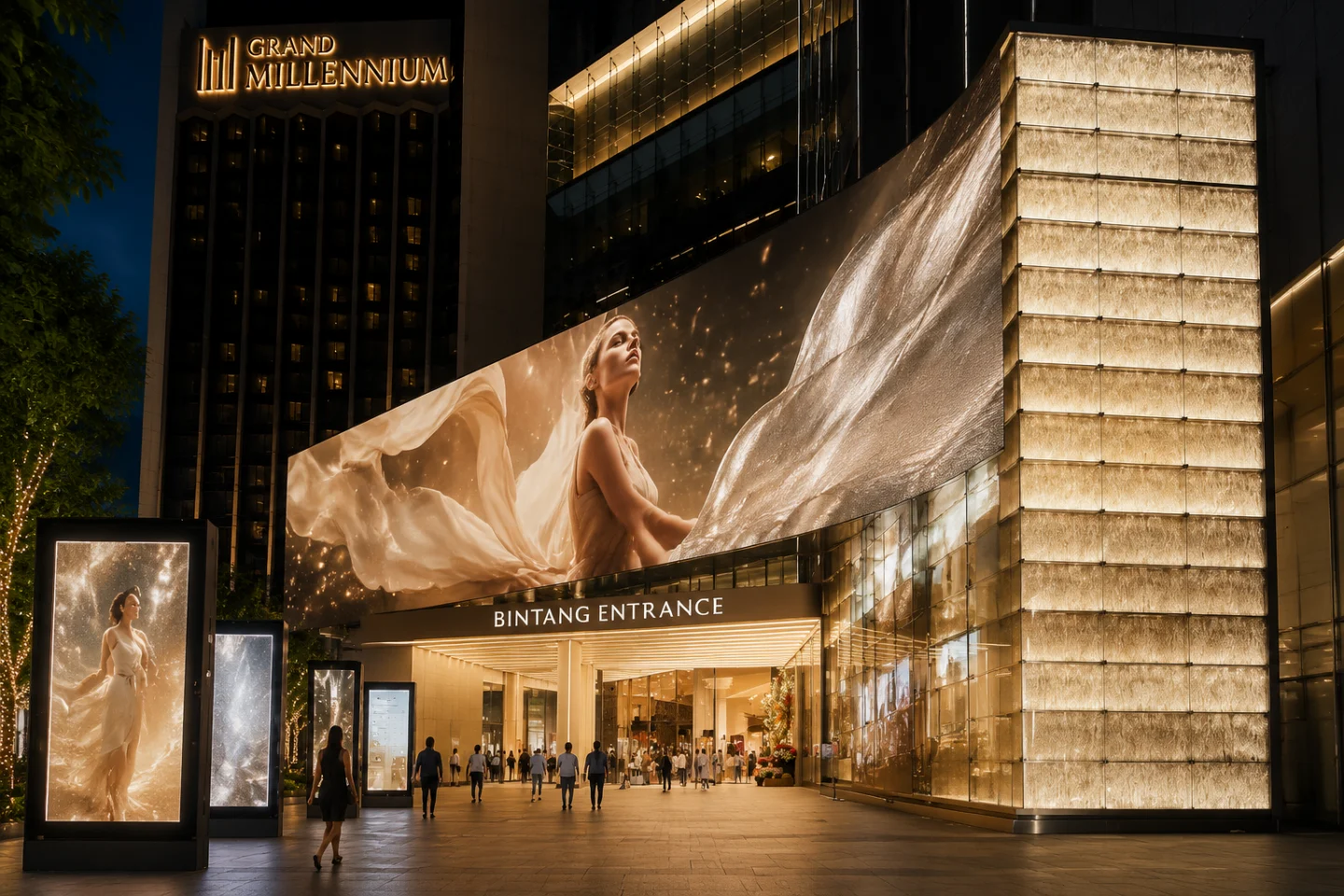

Designed for mall entrances, hotels, supermarkets, vehicle displays, platform billboards, and light-pole screens.

Direct-Sunlight Visibility

Bright colors, high contrast, and high brightness keep content clearly visible in strong outdoor sunlight.

Specifications

Technical specifications.

P2.5

Box Size640×640mm
Brightness≥5000 CD/m²
Pixel Density160,000 dot/m²
Max Power≤1000 W/m²
Avg Power≤400 W/m²

Cabinet Parameters

Module Sizevaries per pitch
IP RatingIP65
Viewing Angle160° / 120°
Refresh Rate1920 MHz

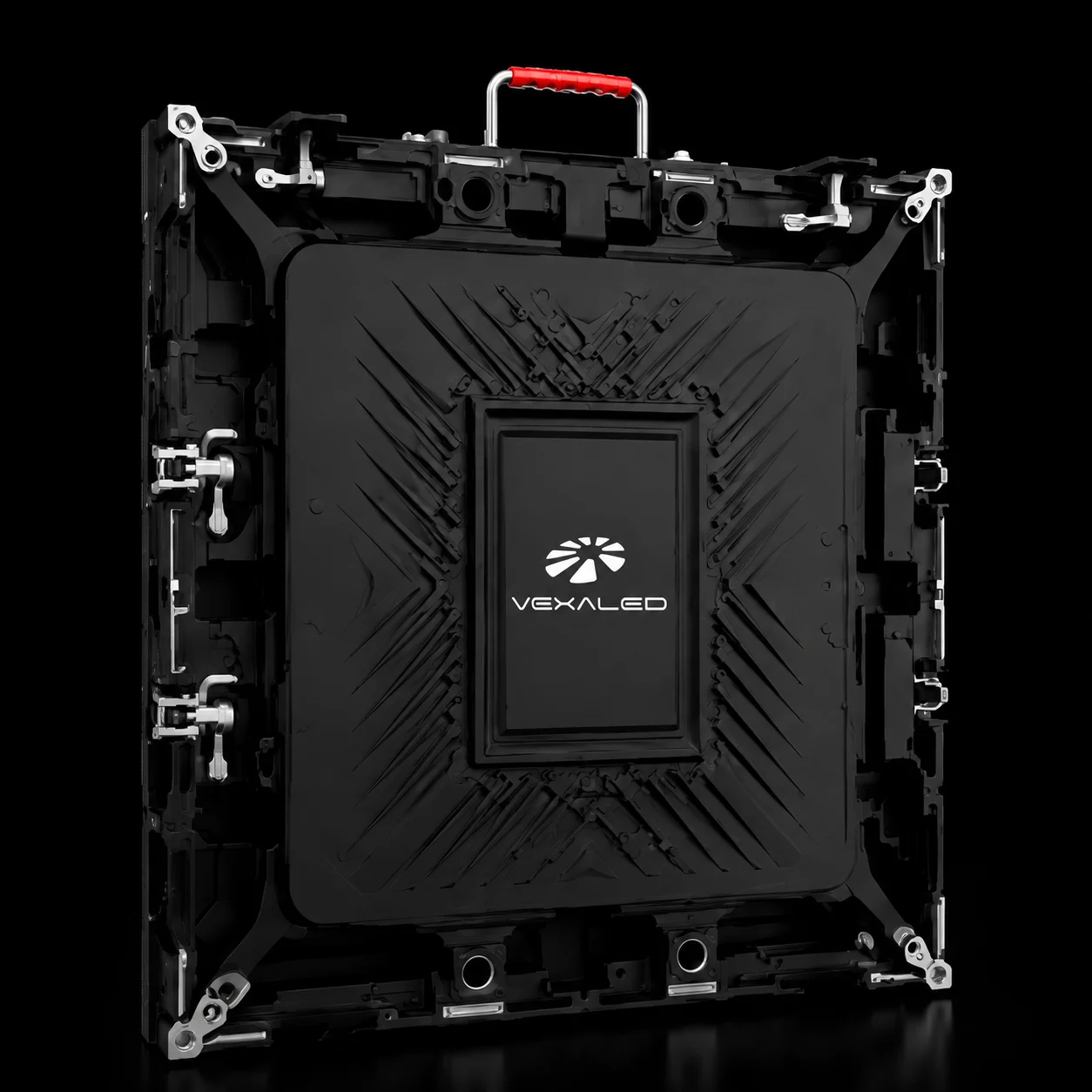

MaintenanceRear
Input VoltageAC110V–240V 50/60Hz
Temperature0–40°C work / −20–60°C storage
Humidity35–85% work / 10–90% storage
Service Life≥100,000 hours
Request datasheet

Hardware

Cabinet components.

SMD/DIP Module

SMD for small/regular pitch, DIP346/DIP546 in-line lamp for P10–P25 series.

Constant-Current Driver

Precision IC constant-current drive holding annual decay within 5%.

Silent Cooling Fan

Temperature-control fan with ultra-low noise for stable long-term operation.

Steel Structure Kit

Galvanized steel mounting frame with adjustable bracket system.

Accessories

Optional add-ons.

Service Platform

Rear maintenance platform bracket for permanent installations.

Waterproof Cover

IP65 weatherproof top cover for rain and debris protection.

Lightning Arrester

Surge protection module for outdoor permanent installations.

Signal Distributor

Signal distribution amplifier for large-format multi-cabinet arrays.

Certifications
CE
European Conformity
RoHS
Hazardous Substances Free
FCC
US Compliance
IP65
Dust & Water Resistant

Contact

Request information.

Get a quotation, full technical specifications, and installation guidance for the Outdoor Small Pitch LED Display.

  • Detailed datasheet
  • Project-specific pricing
  • Installation support
  • Sample availability
Resources

Outdoor Small Pitch LED Display Datasheet

PDF · Available on request

Fixed Installation Guide

PDF · Available on request
