Indoor Small Pitch
Series.

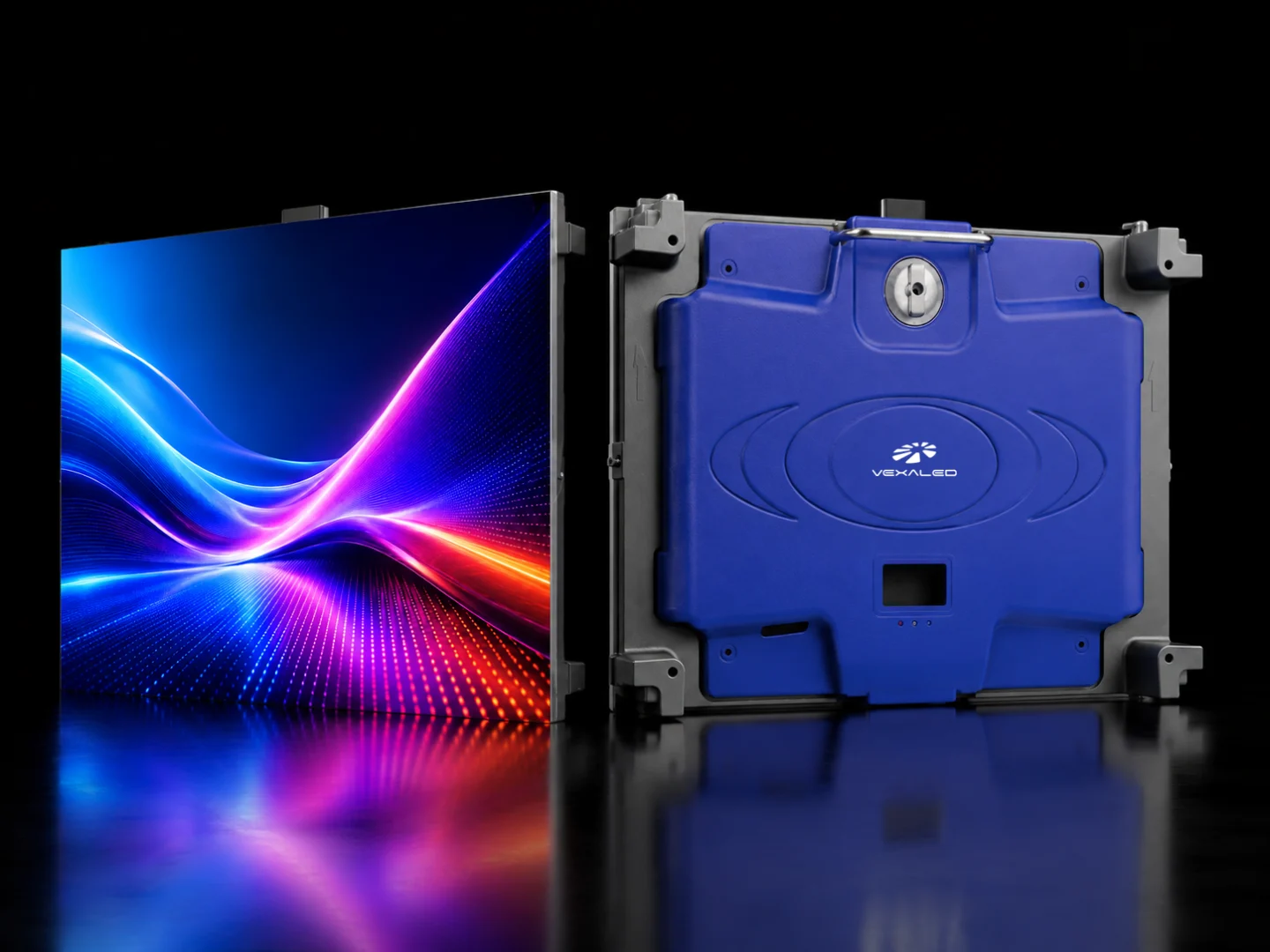

Configuration
400×300mm
Compact format for fine-pitch installations. Standard 200×150mm module with positioning lock for one-step installation. Single box weighs 3–5 kg.
WEIGHT
3–5 kg
PITCH
P1.25–P1.923
MATERIAL
Aluminum Alloy
SIZE
400×300×71mm
Key Features
Built different.
Ultra-Fine Pitch
P1.25 to P1.923 — ideal for close-up boardroom, control room, and broadcast applications.
Matte SMD Beads
Yahei matte SMD1010/1515 lamp beads eliminate screen-surface reflections in brightly lit environments.
Front Maintenance
Aerial plug interface with anti-reverse plug design — modules swap from the front without disturbing the installation.
One-Step Module Install
200×150mm module with positioning lock for fast, tool-free installation. Single box weighs 3–5 kg, liftable with one arm.
Seamless CNC Splicing
Precise CNC-machined die-casting delivers gap-free joints and a refined appearance across large video walls.

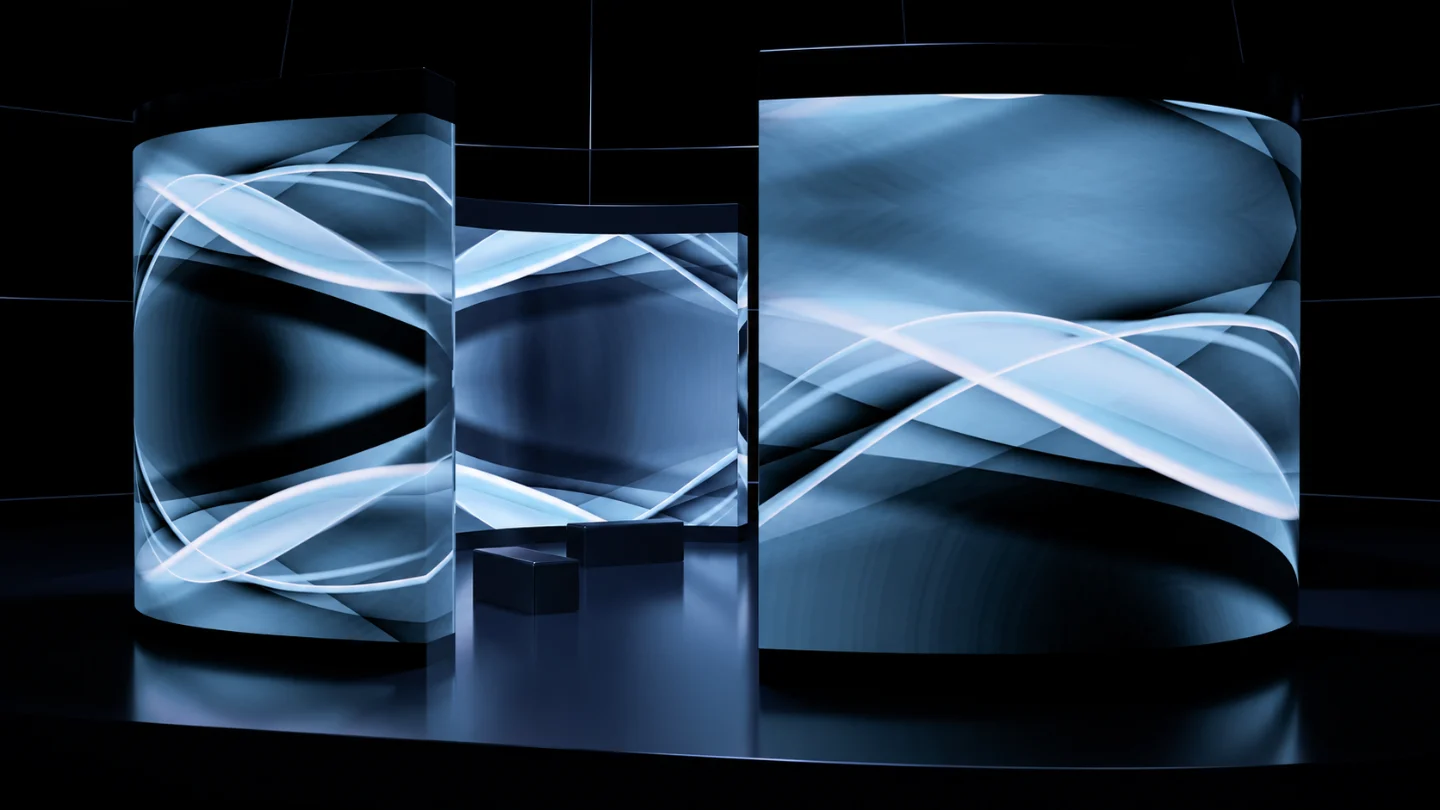

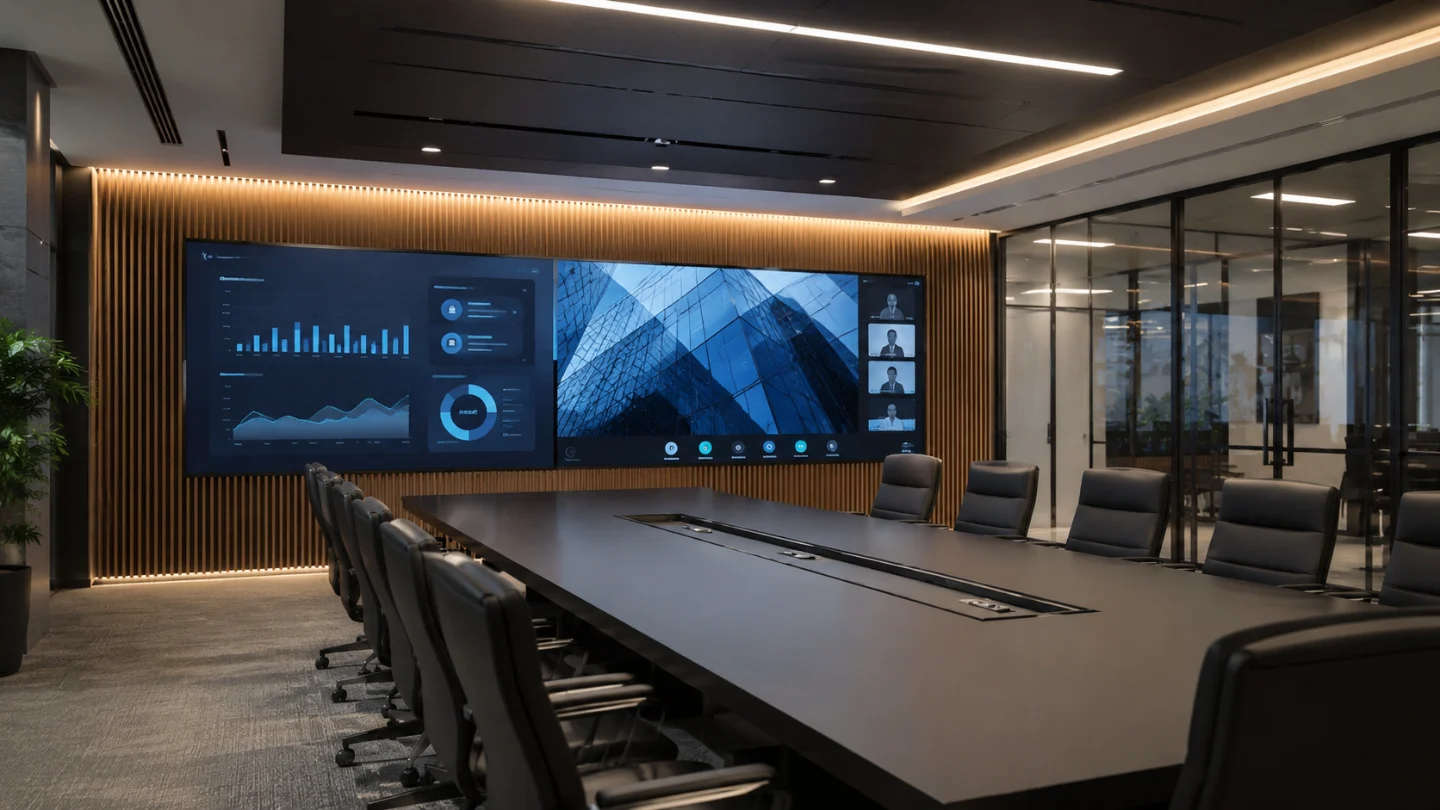

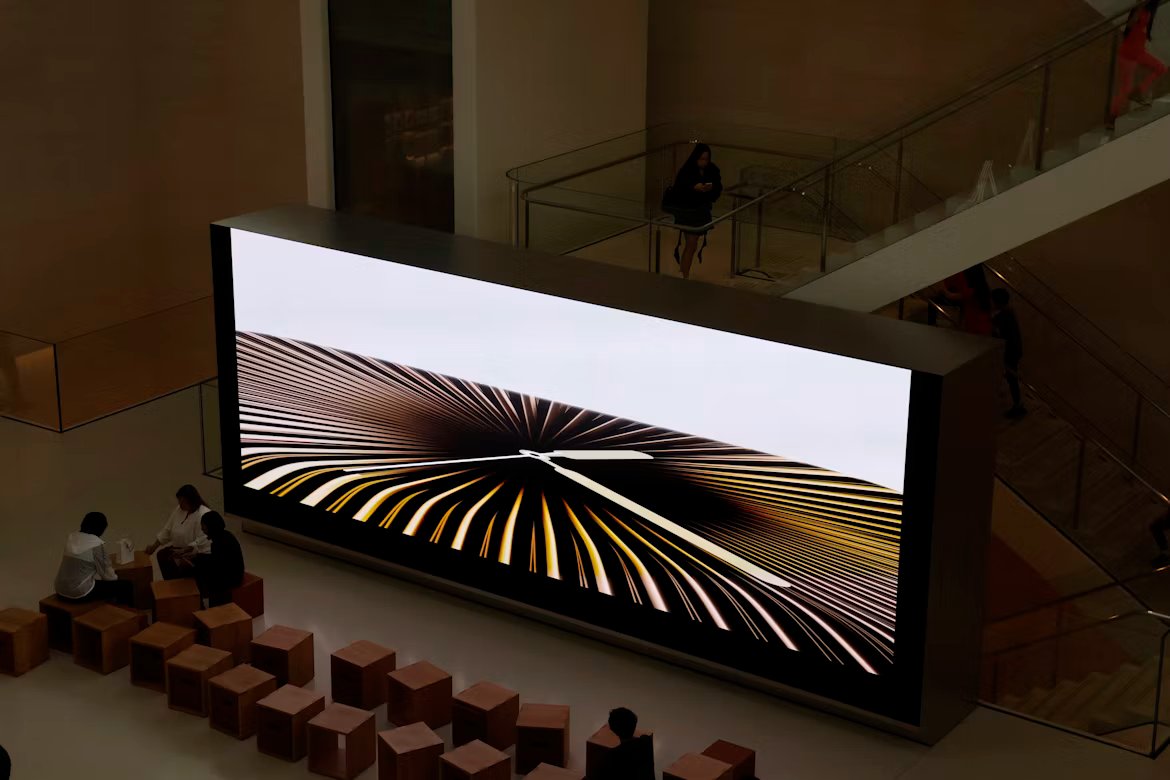

Gallery
Specifications
Technical specifications.
P1.25
Cabinet Parameters
Hardware
Cabinet components.
Quick Lock
Fast-locking mechanism for rapid cabinet assembly
Handle
Ergonomic carry handle for easy transport
Power Depression Bar
Secures the power supply inside the cabinet
Cabinet Connector
Metal connector piece for joining adjacent cabinets
Accessories
Optional add-ons.
Curve Lock
Locking mechanism for curved screen configurations
Indicator Light
Status indicator for diagnostics and monitoring
Corner Protector
Protective corners for shipping and handling
Hanging Bar
Suspension bar for overhead/flying installations
Contact
Request information.
Get a quotation, full technical specifications, and installation guidance for the Small Pitch Series.
- Detailed datasheet
- Project-specific pricing
- Installation support
- Sample availability
